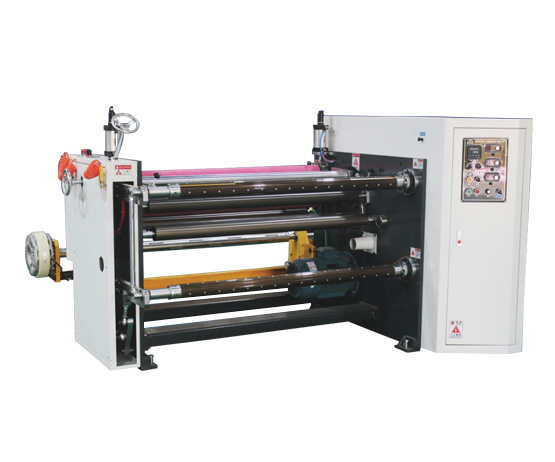

分条机

本机适用于: 光学膜、保护膜、离型膜、泡棉、纸类、铜箔、铝箔、等分条复卷

Optical film, protective film, release film, foam, paper, copper foil,aluminum foil, equal strip rewinding

结构简单，操作简羊实用，适台模切、印刷、滨布鸭行业配套

Simple structure, simple and practical operation, suitable for die-cutting. printing. coating and other industrles.

序号 N/S	名称 Name	规格内容 Specification
1	机器型号 Machine Model	RF- 1300YT
2	分切速度 Cutting speed	0-100 min
3	最大纸宽 Maximum Paper Width	1300 mm
4	最小分切宽度 Minimum Slitting Width	25 mm/30mm(下刀类型差异) 25 mm/30mm(cut type difference)
5	最大贴合材料宽度(选配) Maximum bonding material width (optional)	1250mm
6	原料最大放卷直径 Maximum unwinding diameter of raw material	Φ800 mm
7	最大收卷直径 Maximum take-up diameter	Φ450 mm
8	收、放卷纸筒直径 Diameter of take-up and take-off reels	3英寸(标准) 3 inch (standard)
9	分切精度 Cutting accuracy	士0.15 mm
10	机器重量 Machine weight	2100 kg
11	电机电压功率 Motor voltage power	380v 8kw
12	机器尺寸(长宽高) Machine Dimensions (Length, Width and Height)	2200mm* 2300mm* 1300mm
