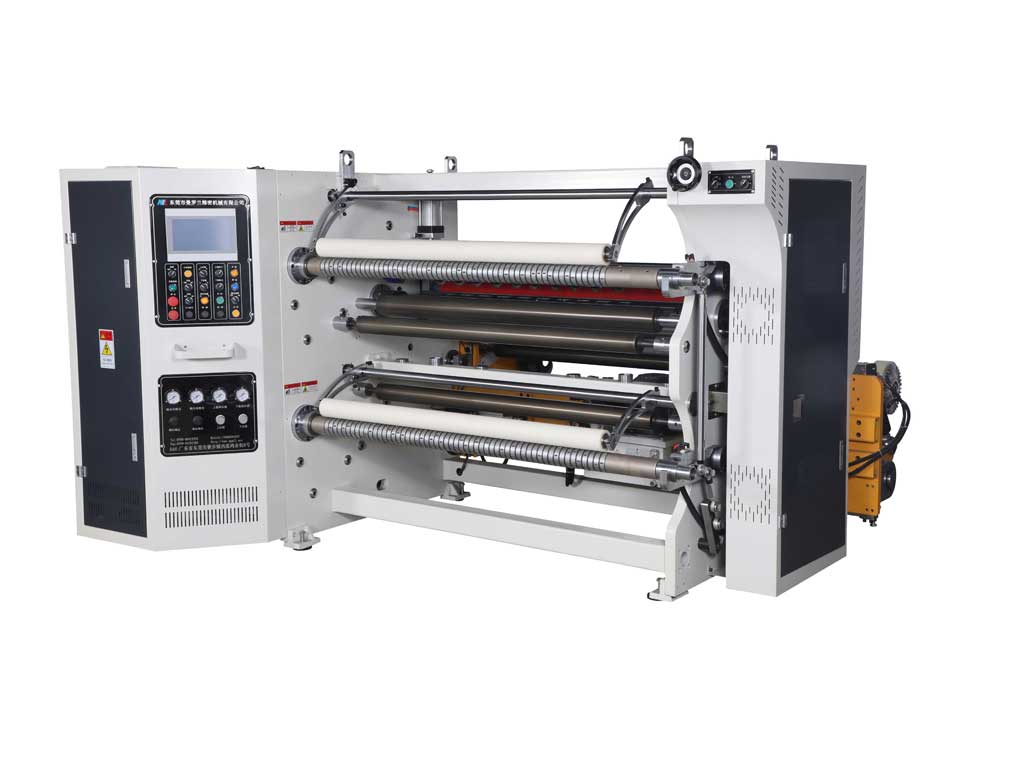

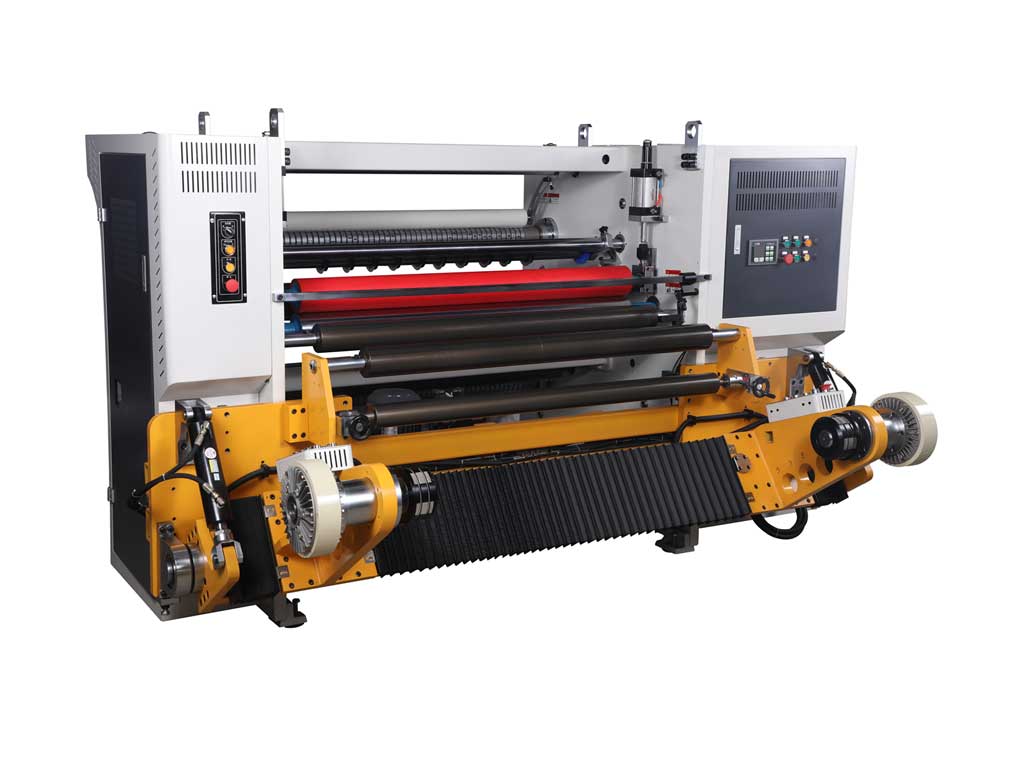

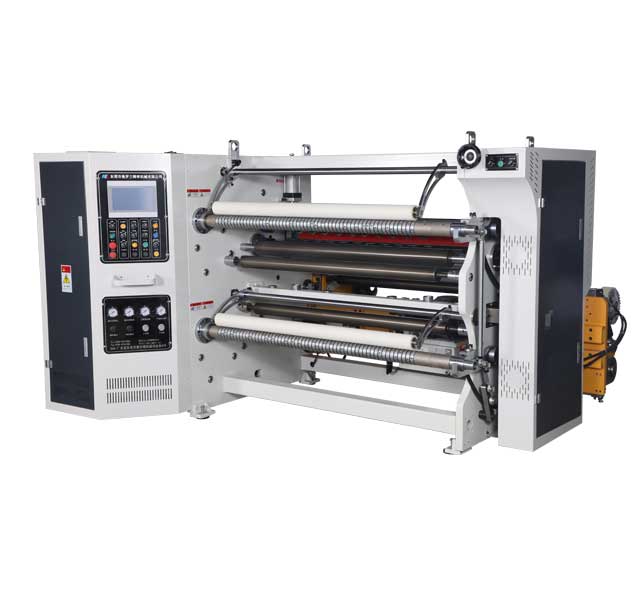

MGX-1350光学膜分条机

  • 所属分类:光学膜分条机

  • 点击次数:
  • 发布日期:2024/07/06
  • 更多
  • 在线询价
  • 详细内容
  • 产品参数
  • 图片说明

MGX-1350分条机参数

MGX-1350 Splitter Parameters

产品特点

本机适用于光学膜,离型膜,PET,OPP,CPP,PVC,纸等卷材,

1.放卷采用无轴放卷:放卷机构采用液压无轴中心式放卷,放卷臂可上下左右调节,大承重为2000kg,配3“6”寸锥度塞头一套,即使在满负荷情况下操作工只需简单操作按键即可轻易完成上卷动作,大幅减轻劳动强度,减少上卷时间,提高生产效率。

2. 纠偏使用交流超声波系统,超声波检测材料边缘,自动识别材料无需任何调整,交流电机驱动,反应灵敏。

3.整机操控人性化,10寸触摸屏人机操作界面、三菱PLC集中控制,开关按键、调节手柄、标志、颜色等的设计符合人体工程学和国家质量检测标准要求,数字显示、变频调速、智能定长停机、紧急停车、过载保护等功能一应俱全。

4.本机采用三马达连动控制,收料轴采用滑差轴,易更换,及维修。

Product Features

This machine is suitable for optical film, release film, PET, OPP, CPP, PVC, paper and so on.

1. Uncoiling adopts shaftless uncoiling: the uncoiling mechanism adopts hydraulic shaftless center type uncoiling, the uncoiling arm can be adjusted up and down and left and right, the maximum load is 2000kg, and a set of 3 "6" inch taper plugs is provided. Even under full load, the operator can easily complete the coiling operation by simply operating keys, greatly reducing labor intensity, reducing coiling time and improving production efficiency.

2. AC ultrasonic system is used to rectify the deviation. Ultrasonic wave detects the edge of the material and automatically identifies the material without any adjustment. AC motor is used to drive the material. It is sensitive and accurate in response and tracking.

3. Humanized control of the whole machine, 10-inch touch screen man-machine interface, Mitsubishi PLC centralized control, switch keys, adjustment handle, logo, color design in line with the requirements of ergonomics and national safety and quality inspection standards, digital display, frequency conversion speed regulation, intelligent fixed-length stop, emergency stop, overload protection and other functions.

4. The machine is controlled by three motors, and the material receiving shaft is slippery shaft, which is easy to be replaced and maintained.





名称

Name

规格内容

Specification

1

☆分切厚度

Slicing thickness

保护膜0.025—0.5mm

Protective film 0.025-0.5MM

2

☆原料宽度

Raw material width

1300mm(轮面宽度1400mm)

1300 mm (wheel face width 1400 mm)

3

☆最大放卷直径

Maximum unwinding diameter

Φ900 mm(放卷有效宽度1350mm*纸管宽度)

Φ900Mm (effective width of unwinding 1350mm*width of paper tube)

4

☆最大收卷直径

Maximum take-up diameter

Φ600 mm-上下双轴

Φ600 Mm-Up and Down Double Axis

5

☆最小分条宽度

Minimum Split Width

30 mm - 1300 mm

6

☆分切端面整齐度

Uniformity of cut end face

±0.1 mm(采用直刀式分条精度可达到±0.15)

± 0. 1 mm (accuracy of ± 0. 15 with straight knife)



7

☆收卷管芯内径

Inside diameter of take-up die

3" (76.2mm) 滑差轴

3 "(76.2 mm) slip shaft

8

☆机械运行速度

Mechanical running speed

0- 220 M/min(设计速度,因材料特性而已)

0-220 M/min (design speed, only due to material characteristics)

9

☆电源供应

Power Supply

380V 50HZ



10

☆机器总功率

Total machine power

25 KW

11

☆机械尺寸约

Mechanical dimensions approx.

长 3800mm*宽2700 mm* 高1700mm

Length 3800mm*Width 2700mm*Height 1700mm

12

☆分切方式

Splitting mode

圆刀分切,直刀共用型

Circular knife cutting, straight knife sharing type

13

☆放料机座

Discharge frame

无轴式上料

Shaftless feeding

14

☆放卷张力检测

Unwinding tension detection

恒张力实时检测自动调整

Automatic Adjustment of Constant Tension Real-time Detection

15

☆边料

Edge material

直接用风机吹 1.1KW+边料机收卷

Blow 1.1 KW + Sidewinder directly with a fan to reel

16

☆卸料

Discharge

收料轴卸料架式卸料

Take-up shaft discharge rack discharge

17

☆收卷靠压辊

Reeling roller

包轮式压辊,用于排气泡。

Wheel-type pressing roller for removing air bubbles.

18

☆保护膜放卷轴

Protective film release reel

3"(76.2mm)气胀轴,采用摆出器卸料及上料,不用卸轴,减轻劳动强度,磁粉放料,手动调节对边,放料膜直径350.

3 "(76.2mm) inflatable shaft, using pendulum to unload and load materials, without unloading shaft, reducing labor intensity, magnetic powder discharging, manually adjusting the opposite side, discharging film diameter 350
