01-MGX-1650光学膜分切机

  • 所属分类:光学膜分切机

  • 点击次数:
  • 发布日期:2019/11/16
  • 在线询价
详细介绍

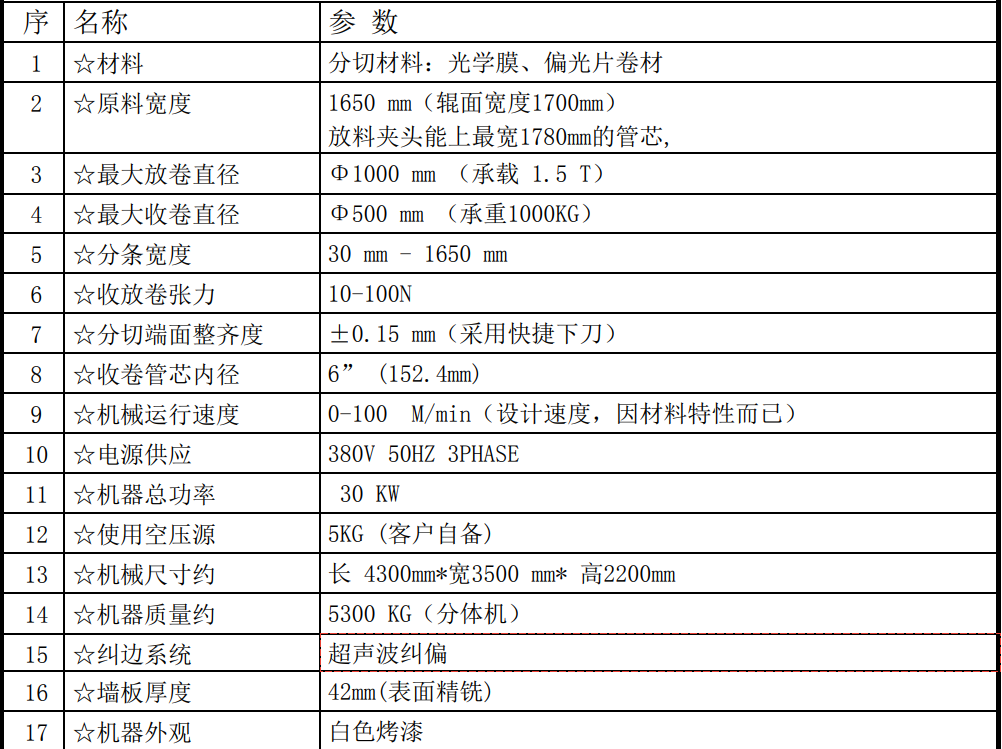

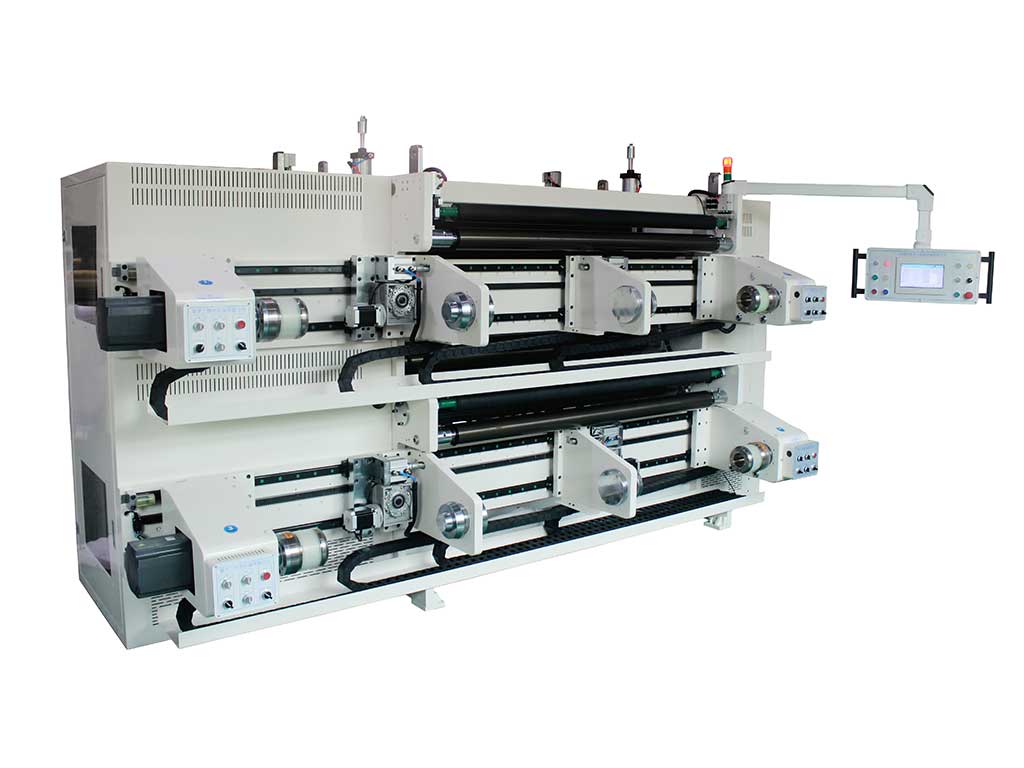

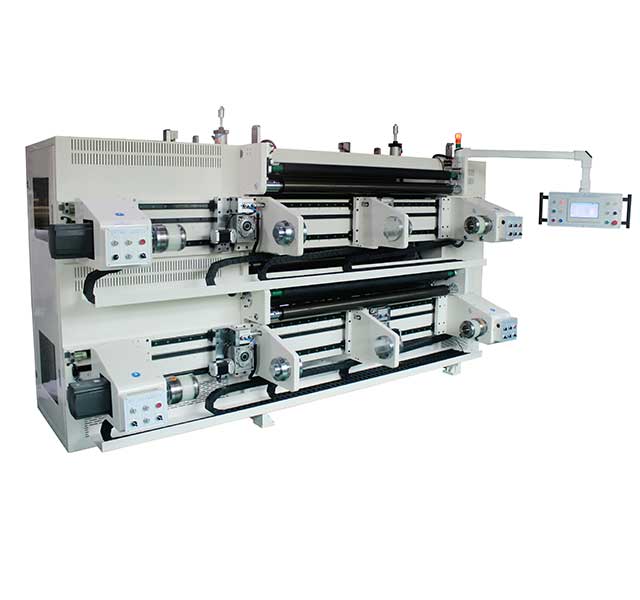

MGX-1650 光学膜分条机参数

Parameters of MGX-1650 Optical Film Splitter

本机适用于光学膜,OCA,离型膜,PET,OPP,CPP,PVC,纸等卷材

1.放卷采用有轴式放卷:放卷采用上料臂式上料,减少上卷时间,提高生产效率

2.放料采用接料平台式接料,接料平整便捷,收料轴采用滑差轴,易跟换,及维护。

3.本机采用三马达连动控制,10寸触摸屏人机操作界面、三菱PLC集中控制,开关按键、调节手柄、标志、颜色等的设计符合人体工程学和国家安全质量检测标准要求,数字显示、变频调速、智能定长停机、紧急停车、过载保护等功能一应俱全。



This machine is suitable for optical film, OCA, release film, PET, OPP, CPP, PVC, paper and so on.



1. Unwinding with axle: Unwinding with feeding arm to reduce winding time and improve production efficiency.



2. That material discharge adopt the material receiving platform type material receive, the material receiving is flat and convenient, the material receiving shaft adopts a slip shaft, and the material receiving shaft is easy to be chan and maintained.



3. The machine adopts three-motor continuous control, 10-inch touch screen man-machine interface, Mitsubishi PLC centralized control, switch keys, adjusting handle, logo, color design in line with ergonomics and national safety and quality inspection standards, digital display, frequency conversion speed regulation, intelligent fixed-length stop, emergency stop, overload protection and other functions.







名称/ Name

规格内容/ Specification


1

分切材料/Cutting material

OCA 离型膜,PET,OPP,CPP,PVC,纸等卷材/

OCA release film, PET, OPP, CPP, PVC, paper and other coils


2

☆原料宽度/ Raw material width

1650mm(轮面宽度1700mm)/

1650mm (wheel face width 1700mm)


3

☆最大放卷直径/ Maximum unwinding diameter

Φ900 mm


4

☆最大收卷直径/ Maximum take-up diameter

Φ600 mm-上下双轴

Φ600Mm-Up and Down Double Axis


5

☆分条宽度/ Split width

30 mm - 1650 mm


6

☆分切端面整齐度/ Uniformity of cut end face

±0.1 mm(采用直刀式分条精度可达到±0.15

± 0. 1 mm (accuracy of ± 0. 15 with straight knife)




7

☆收卷管芯内径/ Inside diameter of take-up die

3" (76.2mm) 滑差轴

3 "(76.2 mm) slip shaft


8

☆机械运行速度/ Mechanical running speed

0- 220 M/min(设计速度,开机速度因材料特性而已)

0-220 M/min (design speed, start-up speed only due to material characteristics)


9

☆电源供应/ Power Supply

380V 50HZ




10

☆机器总功率/ Total machine power

25 KW


11

☆机械尺寸约/ Mechanical dimensions approx

3800mm*宽3200 mm* 高1700mm

Length 3800mm*Width 3200 mm*Height 1700mm


12

分切方式/ Splitting mode

圆刀分切,直刀共用型

Circular knife cutting, straight knife sharing type


13

放料机座/ Discharge frame

上料+接料平台

Shaft feeding + receiving platform


14

☆放卷张力检测/ Unwinding tension detection

恒张力实时检测自动调整

Automatic Adjustment of Constant Tension Real-time Detection



15

☆边料处理/ Edge treatment

直接用风机吹 1.1KW+边料机收卷

Blow 1.1 KW + Sidewinder directly with a fan to reel


16

☆卸料/ Discharge

收料轴卸料架式卸料

Take-up shaft discharge rack discharge


17

☆收卷靠压辊/ Reeling roller

分段式靠辊,气动升降。

Sectional pressure roller, pneumatic lifting.


18

上贴合放卷轴/ Top Sticking

3"(76.2mm)气胀轴,采用摆出器卸料及上料,不用卸轴,减轻劳动强度,磁粉放料,手动调节对边,放料膜直径350.

3 "(76.2 mm) Inflatable shaft, using pendulum to unload and load materials, without unloading shaft, reducing labor intensity, magnetic powder discharging, manually adjusting the opposite side, discharging film diameter 350
