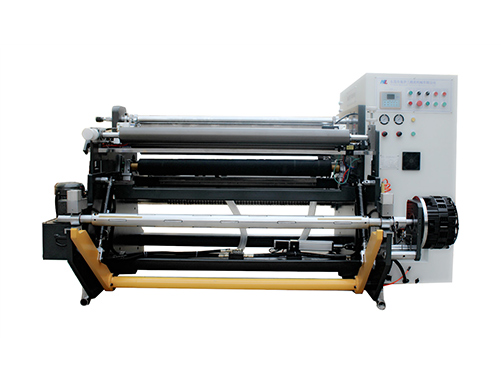

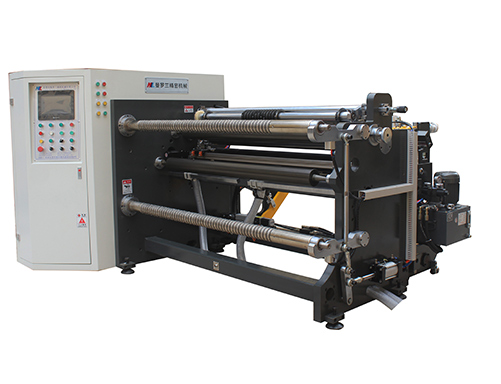

RG-1350YT不干胶分切机-技术参数
Model RG-1350Y Non-Dry Adhesive Cutter-Technical Parameters
本机适合用于不干胶，光学膜，合成纸等分条复卷。操作介面采用 LCD 触控屏，可直接在屏幕上设定各种卷取条件及运转状况。两个卷取马达配合主机马达做三马达连动控制，主机马达隔断放料及收卷马达控制张力，张力稳定，收卷轴采用灵活设计，易拆卸，方便更换不同材料的收卷及维护。控制部分采用编程式控制器进行机械动作控制，备有自我检测系统，机器故障时可自行诊断故障原因 。
This machine is suitable for strip rewinding of adhesive, optical film and synthetic paper. The operation interface adopts LCD touch screen, which can directly set various coiling conditions and operation conditions on the screen. The two take-up motors cooperate with the main motor to perform three-motor continuous control. The main motor separates the take-up and take-up motors and controls the tension. The tension is stable. The take-up reel is designed flexibly and is easy to disassemble. It is convenient to take-up and maintain different materials. The control part adopts programmable controller to control the mechanical action, and has self-detecting system. When the machine fails, the cause of the failure can be diagnosed by itself.
摘要 | 规格内容 | 备注 |
技术要求 Technical requirements | 1.分切厚度Slitting thickness：0.038-0.25mm | |
2.分切宽度Slitting width：30-1350mm | ||
3.分切精度Slitting accuracy：±0.1mm | ||
4.放卷直径Unwinding diameter：≤800mm | ||
5.放卷管芯Reel core：∅76.2-∅77（纸管) | ||
6.收卷直径Winding diameter：≤550mm-上下双轴 | ||
7.收卷管芯Coil core：∅76.2-∅77（纸管) | ||
8.分切速度Slitting speed：0-250m/min（机械速度） | ||
9.电源供应Power supply：380v 50HZ | ||
10.气源/空压器Air source/air compressor：≤5P（客户自备） | ||
主机结构 Host structure
| 1. 55mm 厚墙板thick wallboard | |
2. 整机过渡铝导辊硬质氧化，抛光处理（防刮伤） Hard oxidation and polishing of transition aluminum guide rollers of the whole machine (scratch prevention) | ||
3. 主机连接件时效，加强处理 Time-effect and strengthen treatment of main machine connection parts | ||
亮点功能/和机械配件选型 Highlight function / and mechanical parts selection | 1. 自动量下刀装置 Automatic tool cutting device | √ |
2. 下刀轴采用气胀固定式 The lower tool shaft is fixed by air expansion | √ | |
3. 选用西门子中央工控 Siemens central industrial control | √ | |
4. 整机使用日本进口NSK轴承 The whole machine uses NSK bearings imported from Japan. | √ | |
5. 辅助轴采用可旋转式 Rotatable auxiliary shaft | ||
6. 卸料轴 （滚珠式） Discharging shaft (ball type) |
